CA-306

6×3-inch full-range speaker column

Solution

AC 306 Specification

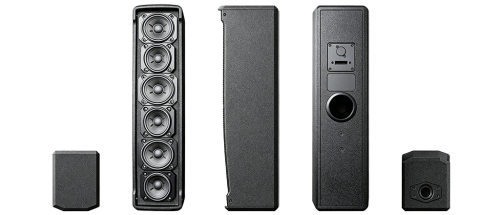

ca-306 multi-angle
  • Powerful Sound: Features six 3-inch high-power full-range units.
  • Wide Coverage: 120° horizontal by 50° vertical dispersion to fill a room evenly.
  • Clear Audio: Delivers a frequency response of 150Hz – 20kHz for crisp highs and vocals.
  • High Output: Reaches a maximum SPL of 123dB, suitable for loud events.

Technical Specification

Technical Property Specification Value
Model CA-306
Type 6x3" Full-range column speaker
Driver Composition 6x3" (75mm) Ferrite units
Frequency Response 150Hz - 20kHz (±3dB)
Sensitivity (1W/1m) 97dB
Max SPL 123dB
Rated Power 120W
Nominal Impedance
Coverage Angle 120° H x 50° V
Mounting Accessories Speaker Support Hole
Wiring 1x Phoenix Terminal; 1x Speakon Connector
Dimensions (W x H x D) 124 x 540 x 157 mm
Weight (kg) 5.95
